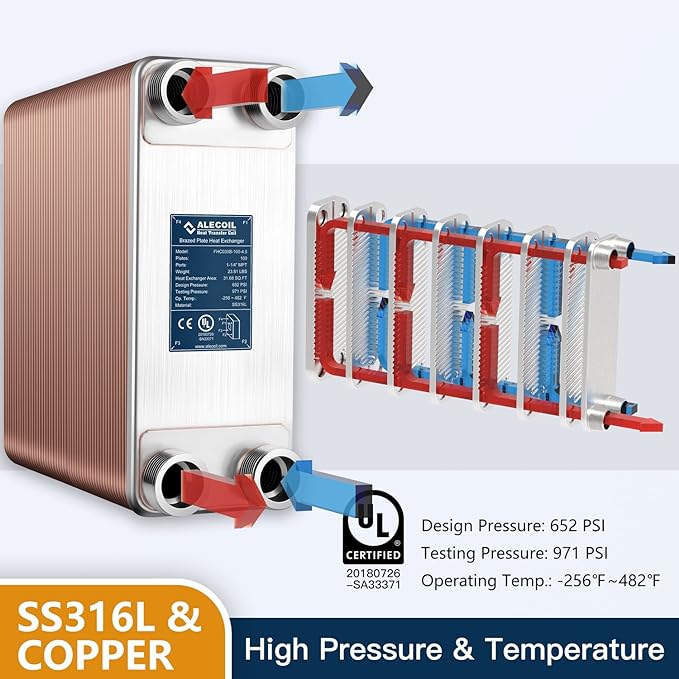

Heat Exchanger Installation and Construction Specifications
The installation of a heat exchanger is crucial to ensure its proper functioning and longevity. It is essential to follow specific guidelines and standards during the installation process to avoid issues such as sinking or excessive deformation of piping connections. This article outlines the necessary steps and considerations for installing a heat exchanger, including foundation preparation, horn placement, alignment, and maintenance.
Foundation Preparation
Before installing the heat exchanger, it is essential to prepare the foundation adequately to support the weight of the equipment and prevent any structural issues. There are two primary types of foundations: brick saddle foundation and concrete foundation.
Brick Saddle Foundation: In this type of foundation, the heat exchanger is directly placed on the saddle foundation without additional support. It allows the equipment to move freely.
Concrete Foundation: The heat exchanger is firmly connected to the concrete foundation using anchor bolts through a saddle support, ensuring stability and structural integrity.
Basic Quality Inspection
Strict inspection and acceptance procedures should be carried out before installing the heat exchanger to ensure the foundation’s quality and compatibility with the equipment. Key inspection items include:
- General surface condition of the foundation
- Foundation elevation, position, shape, and dimensions
- Alignment of reserved holes with requirements
- Correct positioning and condition of anchor bolts, nuts, and washers
- Flatness of the foundation surface for horn placement
Horn Placement
Horns are placed on the foundation to enhance the stability of the heat exchanger and evenly distribute its weight. Different types of horns, such as flat, inclined, and open horns, may be used depending on the installation requirements. Inclined horns should always be used in pairs, and pads should be installed on both sides of anchor bolts to facilitate thermal expansion.
Alignment and Leveling
Once the heat exchanger is in place, it should be leveled using a leveler to ensure proper alignment of pipes and connections. Inclined pad irons can be welded firmly with the support for added stability, but caution must be taken not to weld them to flat pad irons or slide plates.
Maintenance Considerations
Adequate space should be left at both ends of the heat exchanger for cleaning and maintenance purposes. The specific requirements vary depending on the type of heat exchanger:
- Floating Head Heat Exchanger: Sufficient space is needed at the fixed head end for tube bundle extraction and at the outer head end for cover installation and removal.
- Fixed Tube Sheet Heat Exchanger: Space should be provided for tube extraction and replacement, as well as mechanical cleaning.
- U-Shaped Tube Heat Exchanger: Adequate space is required for tube bundle extraction and shell disassembly.
Monitoring and Maintenance
Regular monitoring of temperature and pressure drop is essential to detect any issues with the heat exchanger’s performance. Leakage and scaling should be analyzed and addressed promptly to prevent corrosion and maintain efficiency.
Conclusion
Heat exchangers play a crucial role in various industries, from daily heating applications to complex industrial processes. Proper installation and maintenance are essential to ensure their optimal performance and longevity, ultimately contributing to improved energy utilization and process efficiency.
