Are Circuit Breakers the Same as Air Circuit Breakers?

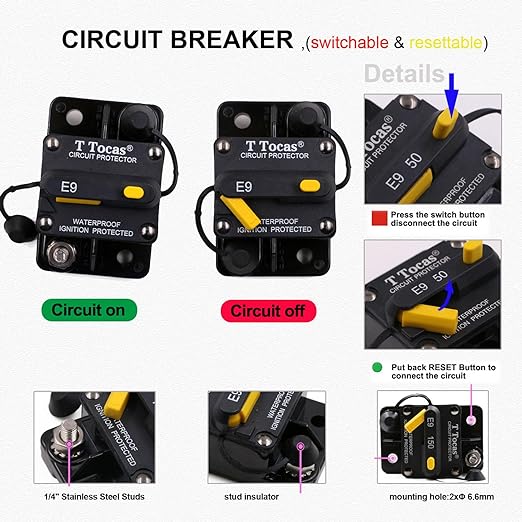

Circuit breakers can be categorized into high-voltage circuit breakers and low-voltage circuit breakers based on their application. High-voltage circuit breakers are often referred to as high-voltage electrical appliances. A low-voltage circuit breaker, also known as an automatic switch or “air switch,” is an electrical device with both manual switching functions and automatic protection features, such as voltage loss, undervoltage, overload, and short-circuit protection. It is used to distribute electrical energy, start asynchronous motors infrequently, protect power supply lines and motors, and automatically disconnect the circuit during severe overloads, short circuits, and undervoltage faults. Its function is similar to that of a fuse switch combined with overheating and underheating relays. Typically, it does not require part replacement after breaking a fault current and is widely used.
An air switch, or air circuit breaker, is a type of circuit breaker designed to automatically open when the current in the circuit exceeds the rated current. This is a crucial component in low-voltage power distribution networks and power drag systems, offering control and various protection functions. In addition to making and breaking the circuit, it protects against short circuits, severe overloads, and undervoltage conditions in circuits or electrical equipment. It can also be used to start motors infrequently.
Differences Between a Circuit Breaker and an Air Switch
An air switch is a specific type of circuit breaker. To distinguish between a general circuit breaker and an air switch, consider the following differences:
- Voltage Levels:
- Air switches are generally used for voltages below 500V.
- Circuit breakers are used for a variety of voltages, typically starting from 220V.
- Current Interruption Capability:
- Circuit breakers can handle larger loads and higher short-circuit currents.
- Arc Extinguishing Medium and Methods:
- Circuit breakers use various arc extinguishing methods, including air, vacuum, oil (both more and less oil), and sulfur hexafluoride.
- Supporting Equipment:
- Circuit breakers often have more complex supporting equipment for measurement, logic, and execution compared to air switches.
- Functionality:
- Air switches serve as isolation and protection devices in small current circuits, automatically tripping during short circuits and high current situations.
- In high-voltage and high-current circuits, circuit breakers are used as operational devices for power disconnection, power transmission, and load switching.
